First Generation Quick Click Panel

Premium

Be the first to leave a review.
  • 2 Person setup
  • 2 Hour Setup time

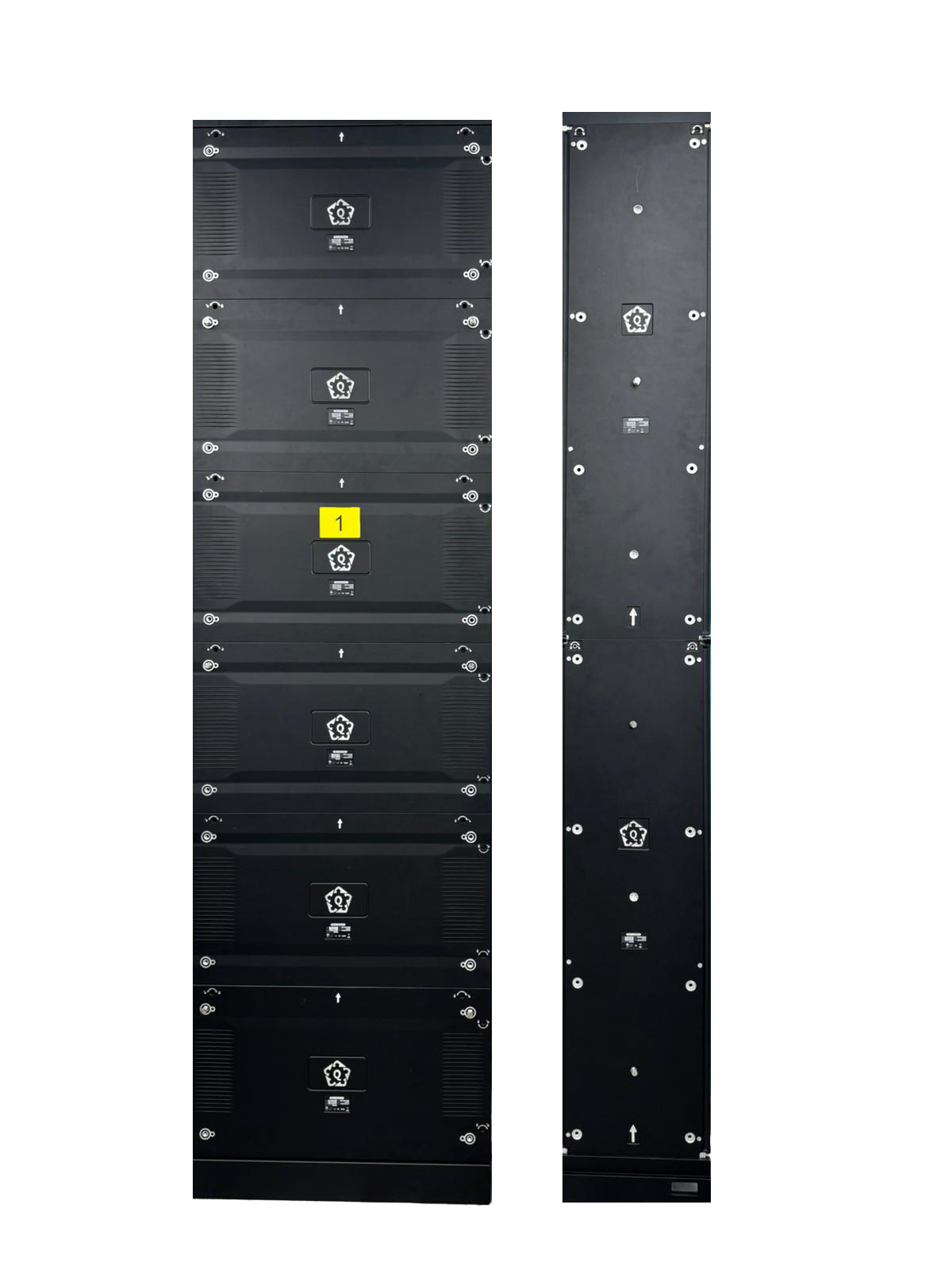

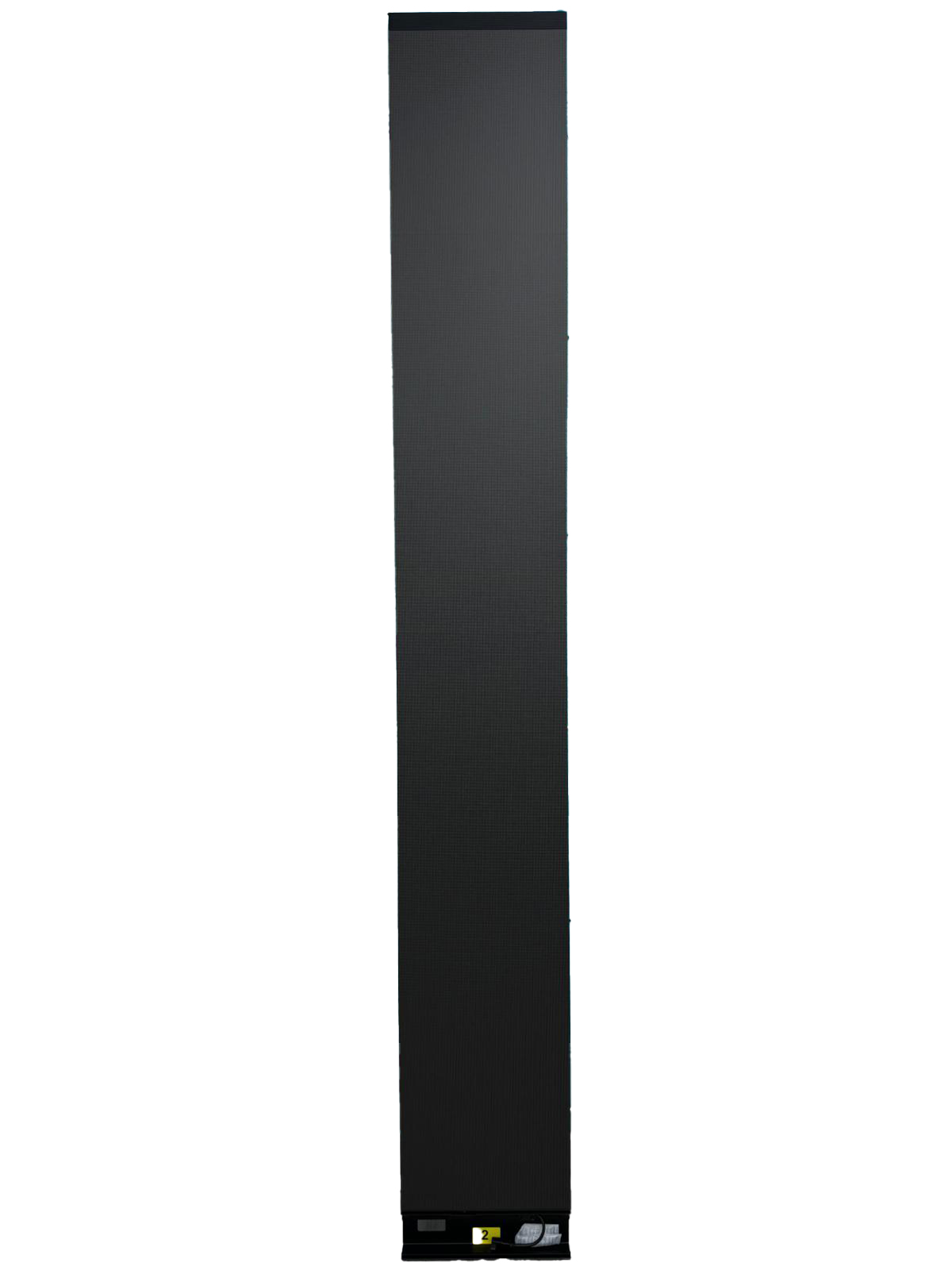

  • Pre-Assembled Panels (no internal cabling)
  • Built in Processor (no programming necessary)
  • Each Panel weighs 75 lbs.
  • Quick-Click LED® Cable technology
  • Hidden Cable Covers
  • Easy HDMI connections
  • Trouble Free Service Kit (easily repairable)

$15,999.00 – $18,999.00

  • Free Shipping (2-5 days)

  • 2 Year Warranty
  • Easily Serviceable

quick, fast, & built to last

Introducing the First-Generation Quick Click LED® – Effortless Video Wall Installation

Experience the revolution in LED video wall installation with the first-generation Quick Click LED® technology. Say goodbye to complex wiring and tedious assembly. This innovative system makes installation a breeze:

  • Effortless Assembly: Simply assemble the frame, mount it securely, and effortlessly click the panels into place.
  • Seamless Connectivity: Connect multiple devices with ease using our included HDMI hub.
  • Versatile Audio Options: Integrate your own sound system using a standard 1/4″ audio cord or optical audio cable (not included).

Ideal for a Wide Range of Applications:

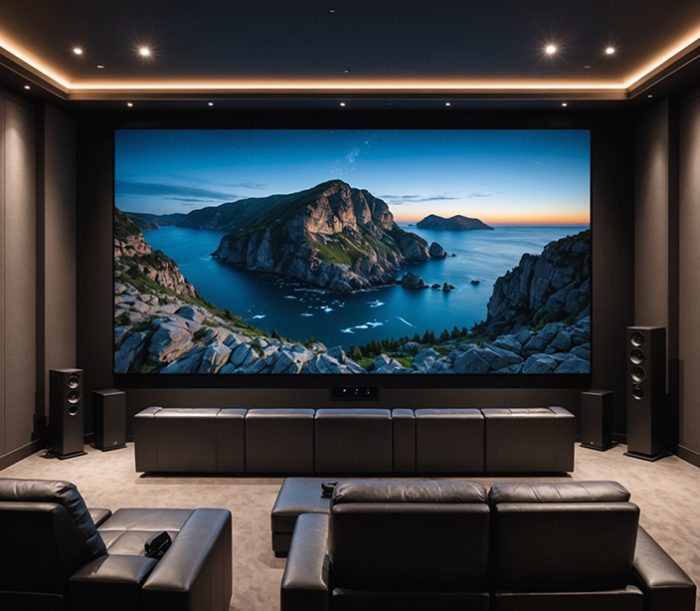

  • Home Theater Screens
  • Conference Room Monitors
  • Display Boards
  • Scoreboards
  • And any application where a TV or projector is currently used.

Built to Last with Unmatched Speed

additional information

Pixel Pitch (mm) .9 1.25 1.56 1.875 2.6 3.9
Diagonal Size 163 in 160 in
Screen Size 11.8’ x 6.64’ 11.5’ x 6.5’
Screen Size w/Border 11.8’ x 7’ No Border
Contrast Ratio 6000:1 6500:1
Refresh Rate 7680 hz 3840 hz
Brightness 600 nits 800 nits
Viewing Angle 160°
GOB Protection Yes No No
Scan Rate 1/40 1/27 1/45 1/45 1/32 1/16
Color Temperature 8500
Screen Weight 338 lbs.
Input Power Range 110-240VAC
IP Rating IP30 IP45
LED Lifetime 100,000 hrs
Package Weight 104 lbs
Certification ETL / FCC/CE
Input 4 HDMI
Resolution 4k 2880 x 1620 2300 x 1300 2k 1344 X 768 896 X 512
Max Power Consumption 2200 watts 2800 watts
Temperature 50-60°

  1. One dedicated 20 amp breaker average
  2. Two 15 amp breakers for max draw (full brightness on all white)

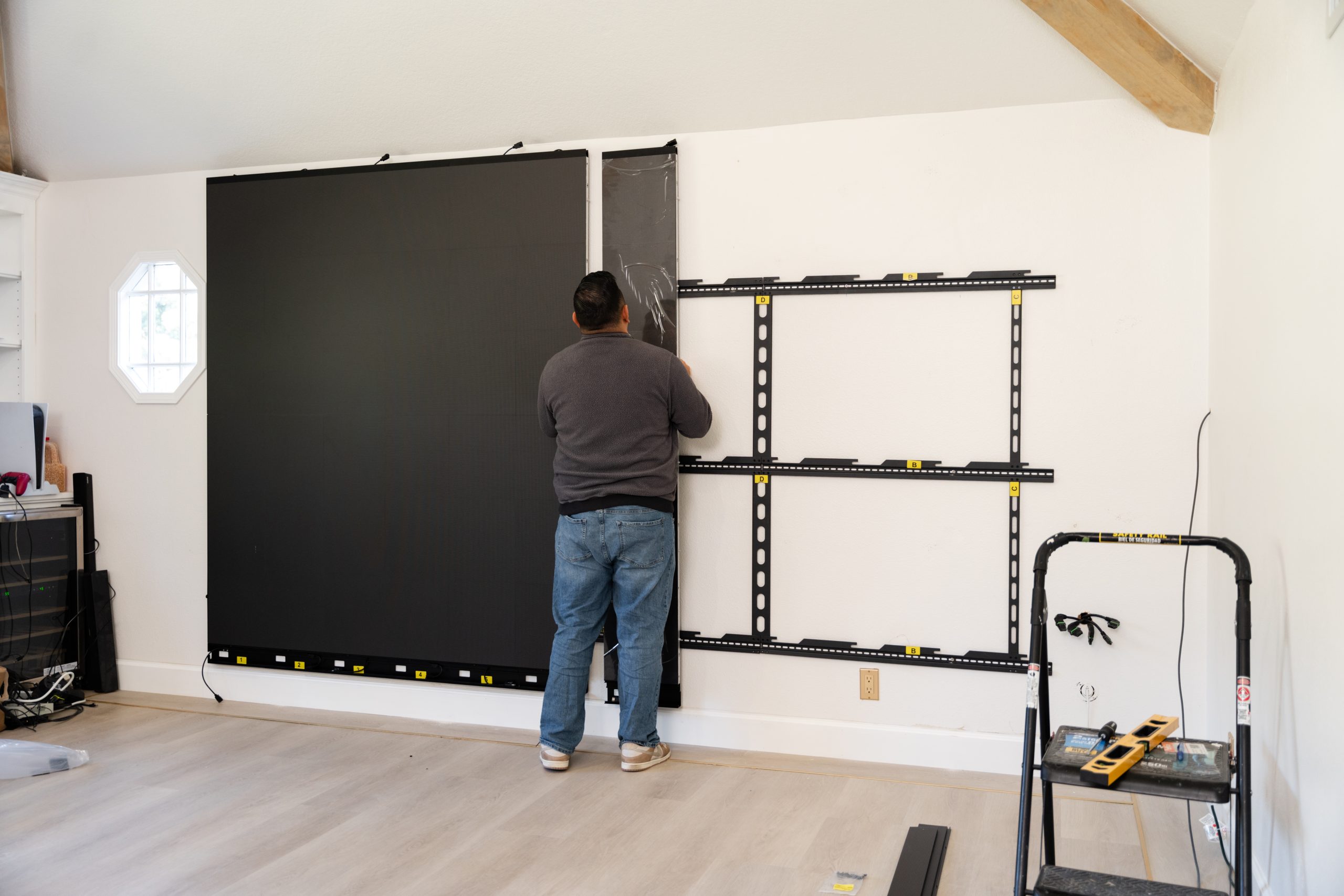

  1. Mark your studs on your wall with vertical lines (5 min)
  2. Assemble light-weight frame via given diagram. (20 min)
  3. Mount leveled frame to wall (20 min)
  4. Attach all panel to frame and quick-click together (30 min)
  5. Connect power and HDMI cables (20 min)
  6. Then plug in any HDMI device to our 4 slot HDMI switcher and connect to any audio source via optical or stereo cord.

  1. Stud finder
  2. Construction Pencil (to mark wall)
  3. Power screw gun w/ adjustable torque for Quick Click LED® Lock
  4. Impact Driver Gun
  5. Fine Phillips screw gun bit (size PHO)
  6. Impact Steel Nut Driving Drill Bit Set
  7. Allen wrench set
  8. Step ladder

(Tools included – leveler, Quick-Click LED ® bit)

  1. Case
  2. Quick Click LED Panels®
  3. All required HDMI Cables ( not HDMI input cable)
  4. All required power cables
  5. Hidden cable covers
  6. 4 Port HDMI Switcher
  7. Frame
  8. Straight-frame ruler
  9. All required screws and bolt (excluding concrete bolts or drywall anchors for walls without studs)
  10. Tools included – leveler, Quick-Click LED ® bit
  11. Spare Parts (modules, power supplies, receiving cards)
  12. Module removal kit.
